kuum/fou.

// e-commerce notification microservice

Event-driven notification service for an e-commerce platform.
Order events flow through RabbitMQ into a durable consumer pipeline — persisted to PostgreSQL, reported to S3, with graceful degradation when upstream services fail. JWT-secured REST API, Testcontainers integration tests, LocalStack S3 in Docker.

"Don't let S3 take down your order flow — degrade gracefully, retry asynchronously."

→ view source see event flow design decisions

0svc

docker services

0×

integration tests

0min

S3 presigned URL TTL

lost messages on restart

01 system architecture

LAYER I · REST

Order Producer

Spring MVC · JWT Auth

POST /orders → publishes to RabbitMQ
GET /orders/user/{id} → N+1-safe query
GET /orders/{id}/report → presigned URL
JWT filter on all non-auth routes
RFC 7807 Problem Details on errors
@PreAuthorize ownership check

LAYER II · MESSAGING

RabbitMQ Pipeline

Spring AMQP · Durable Queue · DLQ

Durable exchange + queue
Dead-letter queue for failed messages
JSON serialization via Jackson
Exponential backoff on producer
Idempotency check in consumer
Auto-ack with DLQ on rejection

LAYER III · STORAGE

Persistence + S3

JPA · Hibernate · LocalStack

Order + Notification saved in one tx
S3 upload outside transaction
PENDING_UPLOAD fallback on S3 fail
@Scheduled retry every 5 min
Flyway schema versioning
JOIN FETCH solves N+1

III

02 event flow

POST /orders
     │
     ▼
OrderController ──► OrderProducer ──► RabbitMQ (orders.queue, durable)
                                              │
                                              ▼
                                       OrderConsumer
                                              │
                         ┌─────────────────────┼──────────────────────┐
                         ▼                   ▼                     ▼
               OrderRepository   NotificationRepository   S3ReportService
                         │                   │                     │
                         ▼                   ▼              ┌──────┴──────┐
                   PostgreSQL        PostgreSQL             │   success   │   failure
                                                            │             │
                                                            ▼             ▼
                                                        SENT    PENDING_UPLOAD
                                                                       │
                                              @Scheduled every 5 min ──► S3RetryScheduler

03 design decisions

architecture decisions · rationale

topic	decision	why
Hibernate N+1	JOIN FETCH in JPQL	Single SQL loads orders + notifications instead of 1+N queries
S3 fallback	PENDING_UPLOAD status	DB commit before S3 — upload failure never loses the order
Idempotency	existsById() check	Duplicate RabbitMQ delivery silently skipped, no duplicate orders
Transaction split	TransactionTemplate	S3 call outside TX — connection not held open during slow upload
DLQ	orders.dlq	Poison messages don't loop forever — inspectable, replayable
Retry scheduler	@Scheduled fixed delay	S3 recovers → all PENDING_UPLOAD notifications auto-healed
Auth	JWT + Spring Security	Stateless, ownership-checked — users only see their own orders

04 tech stack

core

Java 21 Spring Boot 3 RabbitMQ PostgreSQL Spring Data JPA Hibernate Flyway

storage & messaging

AWS SDK v2 LocalStack S3 Spring AMQP Jackson Spring Security JWT (jjwt)

testing & infra

Testcontainers LocalStack TC Awaitility Docker Compose Prometheus Grafana Spring Actuator

05 quick start

STEP 1 · SETUP

Start Stack

Docker · Java 21 · Maven

git clone kuum-oss/fou
docker compose up --build -d
PostgreSQL → :5432
RabbitMQ UI → :15672 (guest/guest)
LocalStack S3 → :4566
App → :8080

STEP 2 · AUTH

Get Token

JWT · POST /auth/token

POST /auth/token {"userId":"user-123"}
returns {"token":"eyJ..."}
use as Bearer in all requests
token tied to userId
ownership enforced on GET /orders

STEP 3 · USE

Create Order

REST → RabbitMQ → S3

POST /orders → 202 + orderId
consumer processes async
GET /orders/user/{id} → orders + notifications
GET /orders/{id}/report → presigned URL
URL valid 15 minutes

terminal · full flow

$ git clone https://github.com/kuum-oss/fou && cd fou

$ docker compose up --build -d

[+] Running 4/4 — postgres · rabbitmq · localstack · notifyhub

# get JWT token

$ curl -X POST localhost:8080/auth/token \

-H "Content-Type: application/json" \

-d '{"userId":"user-123"}'

{"token":"eyJhbGciOiJIUzI1NiJ9..."}

# create order → published to RabbitMQ

$ curl -X POST localhost:8080/orders \

-H "Authorization: Bearer eyJ..." \

-d '{"userId":"user-123","amount":99.99}'

{"orderId":"550e8400...","message":"Order accepted and queued"}

# get S3 presigned report URL

$ curl localhost:8080/orders/550e8400.../report \

-H "Authorization: Bearer eyJ..."

{"presignedUrl":"http://localhost:4566/notifyhub-reports/order_550e8400..._report.txt?..."}

06 integration tests

Testcontainers · real infra · no mocks ✓ ALL PASS

test	containers	what it verifies	result
whenOrderCreated_thenOrderAndNotificationSavedInDb	Postgres · RabbitMQ	REST → queue → consumer → DB · full async flow with Awaitility	✓ PASS
whenMessagePublishedDirectly_thenConsumedAndPersistedToPostgres	Postgres · RabbitMQ	Producer → durable queue → consumer saves Order + Notification	✓ PASS
whenReportUploaded_thenFileExistsInS3AndPresignedUrlIsReturned	Postgres · RabbitMQ · LocalStack	S3 upload via LocalStack · HeadObject confirms file · presigned URL generated	✓ PASS
whenFetchingOrdersForUser_thenNotificationsLoadedWithoutN1	Postgres · RabbitMQ · LocalStack	2 orders × 2 notifications — JOIN FETCH loads all without LazyInitializationException	✓ PASS
whenS3Unavailable_thenNotificationSavedWithPendingUploadStatus	Postgres · RabbitMQ · LocalStack	Bucket deleted → upload fails → notification persisted as PENDING_UPLOAD	✓ PASS

integration tests

real containers

infrastructure mocks

ESC / CLICK TO CLOSE ×

07 proof · it runs

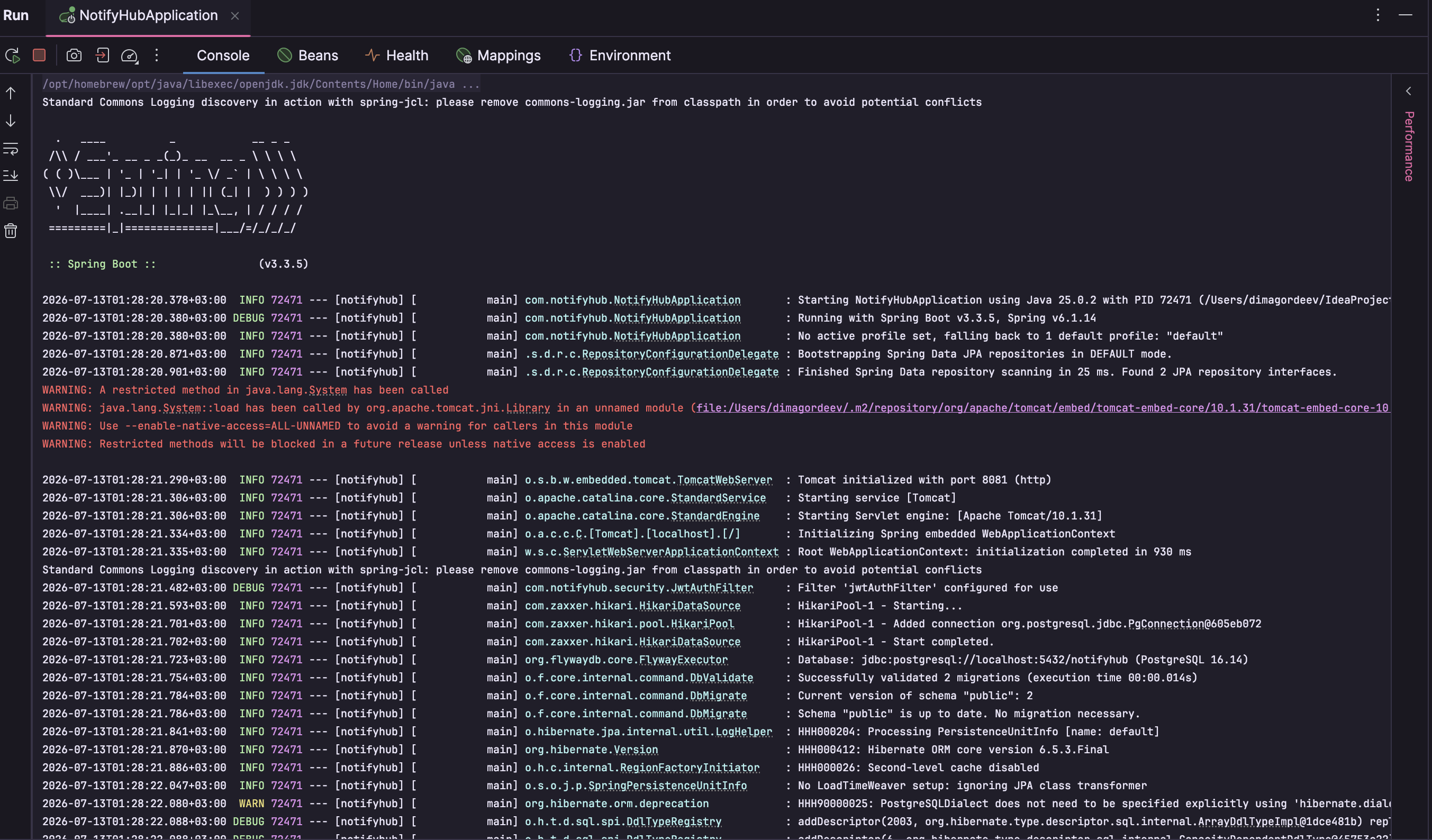

startup Spring Boot up — Flyway, HikariCP, RabbitMQ, S3 in 4.3s

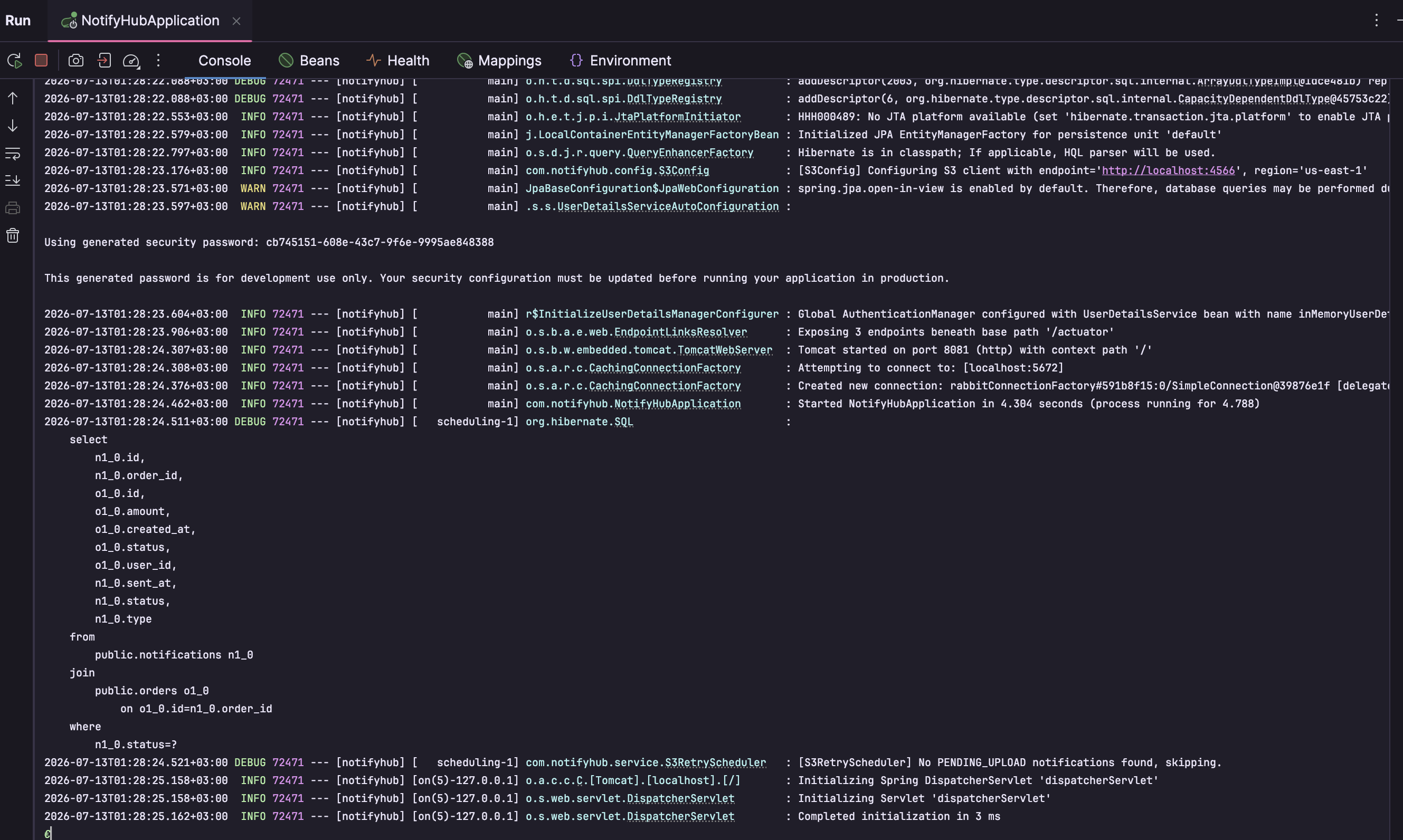

runtime Flyway validated · JOIN FETCH SQL · S3RetryScheduler idle

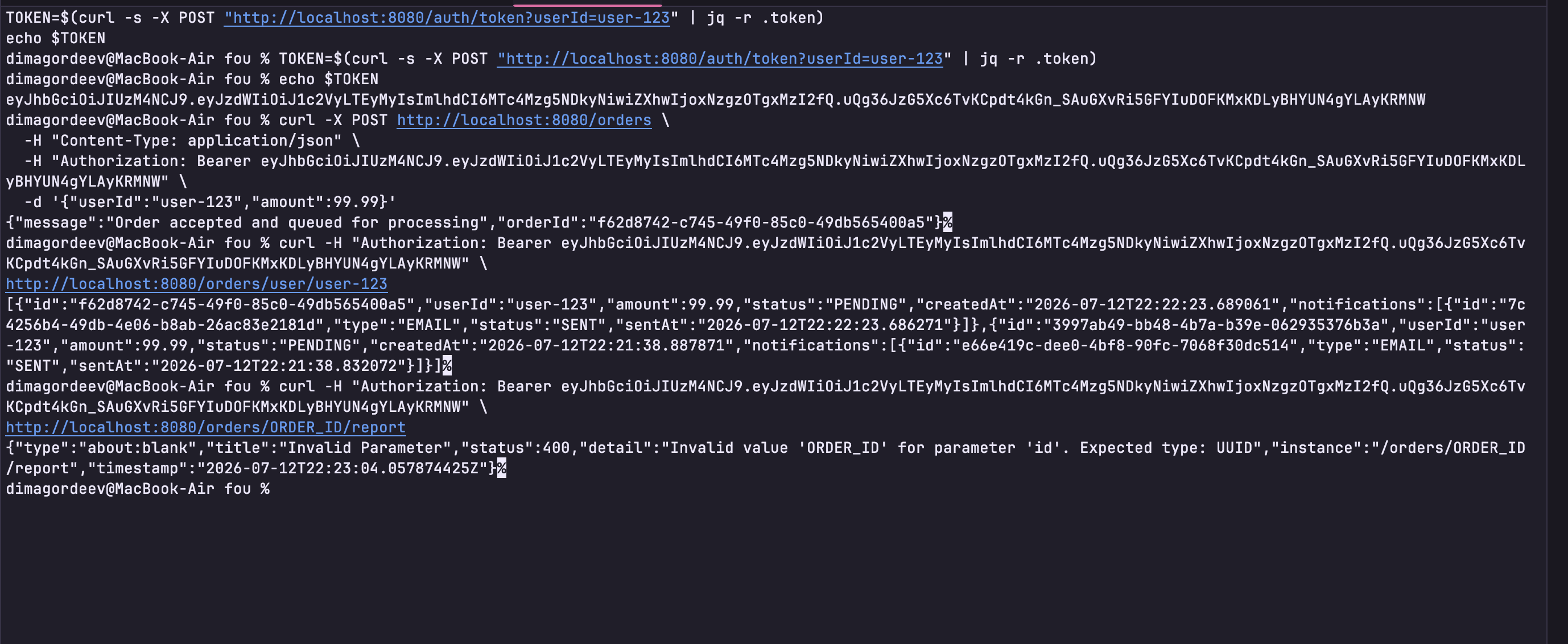

api JWT → POST /orders → GET with notifications → RFC 7807 on bad UUID

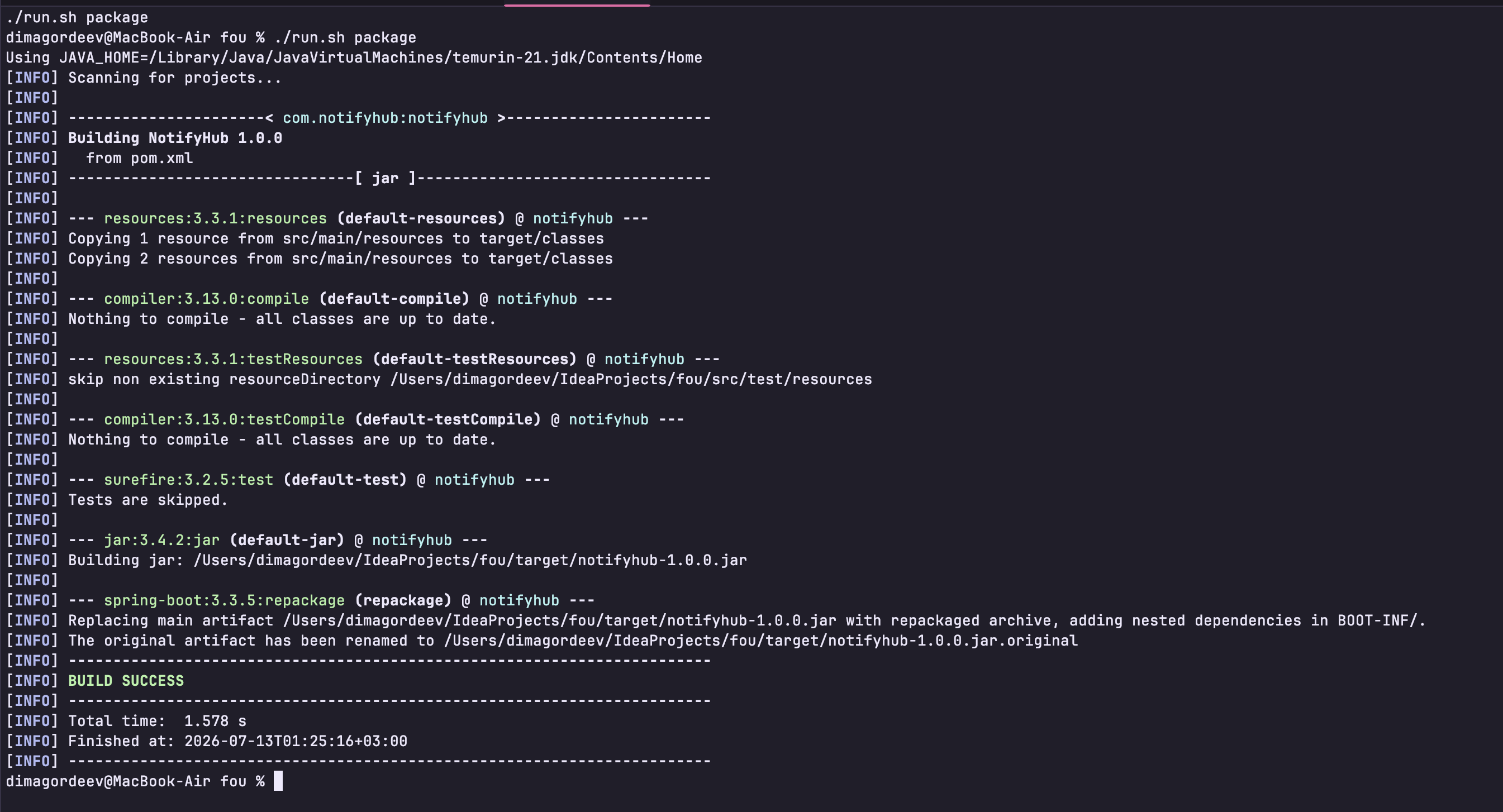

build ./mvnw clean package · 28 files · BUILD SUCCESS · 3.4s
